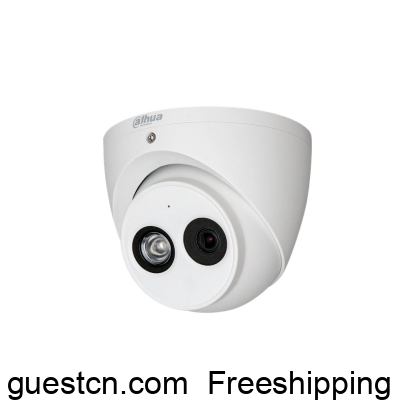

Dahua DH-HAC-HDW1500TLMQ-A 5MP Starlight HDCVI Camera

Experience 5MP full HD video and the simplicity of using existing cabling
infrastructure with HDCVI. The Lite series 5MP HDCVI camera features
a compact design and offers a high quality image at a friendly price. It
offers various motorized/fixed lens models with a multi-language OSD
and HD/SD switchable output. Its structural flexibility and high cost-per
formance make the camera an ideal choice for SMB solutions.
* The parameters and datasheets below can only be applied to 1500-S2 series.
·
Max 25 fps@5MP (16:9 video output)
· Quick-to-install eyeball saves installation time
· CVI/CVBS/AHD/TVI switchable
· 3.6 mm fixed lens (2.8 mm optional)
· Built-in mic(-A)
· Max. IR length 30 m, Smart IR
· IP67, 12V DC
30m IR Series
Lite
Smart IR
The camera is designed with IR LED illumination for best lowlight perfor
mance. Smart IR is a technology to ensure brightness uniformity in B/W
image under low illumination. Dahua’s unique Smart IR adjusts to the
intensity of camera’s infrared LEDs to compensate for the distance of
an object, and prevents IR LEDs from overexposing images as the object
comes closer to the camera.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the XVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Easy Installation
HDCVI Quick-to-install eyeball adopts quick-to-install pedestal, which
can achieve easier installation than conventional eyeball. Quick-to-install
camera reduces time and labor costs.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance
without any loss. It supports up to 700 m for 5MP HD video through
coaxial cable, and up to 300 m through UTP cable.*
*Actual results verified by real-scene testing in Dahua’s test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional analog
system without replacing existing coaxial cabling. The plug and play
approach enables full HD video surveillance without the hassle of con
f
iguring a network.
Multi-formats
The camera supports multiple video formats including HDCVI, CVBS and
other two common HD analog formats in the market. The four formats
can be switched over through OSD menu. This feature makes the cam
era compatible with most end users’ existing HD/SD DVRs.
Multi-language OSD
OSD menu provides multiple image adjustments and function settings
to meet the requirements of different monitoring scenes. The OSD
menu includes configurations such as backlight mode, day/night, white
balance, privacy mask and motion detect. The camera supports 11
languages for OSD menu, namely, Chinese, English, French, German,
Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.
Protection
The camera’s outstanding reliability is unsurpassed due to its rugged de
sign. The camera is protected against water and dust with IP67 ranking,
making it suitable for indoor or outdoor environments.
With working temperature range of –40 °C to +60 °C (–40 °F to +140 °F),
the camera is designed for extreme temperature environments.
Supporting ±30% input voltage tolerance, this camera suits even the
most unstable power supply conditions. Its 4kV lightning rating provides
protection against the camera and its structure from the effects of
lightning.

Technical Specification
Camera
Image Sensor 1/2.7 inch CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.005 Lux/F1.6, 30IRE, 0 Lux IR on
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 1
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6
Field of View
2.8 mm: 132° × 111° × 58°
(diagonal × horizontal × vertical)
3.6 mm: 109° × 92° × 48°
(diagonal × horizontal × vertical)
Iris Type Fixed iris
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.2 ft)
DORI
Distance
Lens Detect Observe Recognize Identify
2.8 mm 63.6 m
(208.7 ft)
25.4 m
(83.3 ft)
12.7 m
(41.7 ft)
6.4 m
(21.0ft)
3.6 mm 80 m
(262.5 ft)
32 m
(105.0 ft)
16 m
(52.5 ft)
8 m
(26.2 ft)
Video
Frame Rate
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 ×
1080); 960 H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
www.dahuasecurity.com
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
Certifications
Certifications
CE (EN55032:2015, EN 61000-3-2:2014, EN
61000-3-3:2013, EN55024:2010+A1:2015, EN
55035:2017, EN50130-4:2011+A1:2014, EN 62368
1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Audio Interface One channel built-in mic (-A)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one
BNC port
Power
Power Supply 12V ±30% DC
Power Consumption Max 3.2W (12V DC, IR on)
Environment
Operating Temperature–40°C to +60°C (–40°F to 140°F); < 95% (non
condensation)
Storage Temperature–40°C to +60°C (–40°F to 140°F); < 95% (non
condensation)
Protection Grade IP67
Structure
Casing Metal dome+metal cover+plastic decorative ring
Camera Dimensions φ109.9 mm × 88.1 mm ( φ4.33″ × 3.47″ )
Net Weight 0.33 kg (0.73 lb)
Gross Weight 0.44 kg (0.97 lb)
