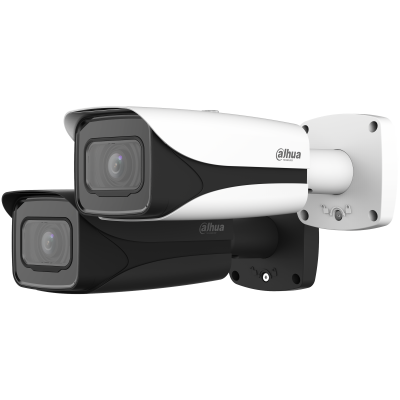

Dahua IPC-HFW38(4)49T1-(Z)AS-PV(-PRO) 4/8MP WizColor TiOC PRO Vari-focal Bullet WizSense Network Camera

Camera

Image Sensor

1/1.8″ CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

256 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.001 [email protected] (Color, 30 IRE)

0.0005 [email protected] (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 60 m (196.85 ft) (IR)

Up to 60 m (196.85 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual;Zoomprio

Illuminator Number

4 (Multi-core (IR + warm) light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ16

Focal Length

2.7 mm–12 mm

Max. Aperture

F1.2

Field of View

H: 112°–48°

V: 58°–27°

D: 137°–55°

Iris Control

Fixed

Close Focus Distance

W: 1.75 m (5.74 ft)

T: 5.21 m (17.09 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

87.6 m

(287.40 ft)

35.0 m

(114.83 ft)

17.5 m

(57.41 ft)

8.8 m

(28.87 ft)

T

186.6 m

(612.20 ft)

74.6 m

(244.75 ft)

37.3 m

(122.38 ft)

18.7 m

(61.36ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection.

Face Detection(Full Image)

Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

SMD

SMD 4.0

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA

Adopt deep learning algorithms to adjust the parameters

of the image to suit the conditions.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

AI Coding

AI H.265; AI H.264

*Includes smart codec technology, Smart H.265+ and Smart H.264+

Video Frame Rate

Main stream: 3840 × 2160@(1 fps–25/30 fps)
Sub stream: 1920 × 1080@(1 fps–25/30 fps)

Third stream: 1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

8M (3840 × 2160); 6M (3200 × 1800); 5M (3072 × 1728); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

VBR; CBR; ABR

Video Bit Rate

H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Smart Dual Light

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Built-in MIC

Yes, built-in dual Mic

Built-in Speaker

Yes, built-in speaker

Max power consumption: 2 W; max sound level at 10 cm: 110 dB

* Test results from laboratory

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; stay detection; loitering detection; face detection (full image); scene changing; audio detection; voltage detection; defocus detection; SMD; security exception

Network

Network Port

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration

Interoperability

ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP;SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE11
Chrome
Firefox

Management Software

Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client

iOS;Android

Security

Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetc Compatbility Directve
2014/30/EU

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output

1 channel out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC

Power

Power Supply

12 VDC/PoE+ (802.3at)

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 4.1 W (12 VDC); 6.5 W (PoE)

Max. (H.265 + WDR+ warm light + siren and light active deterrence + intelligence on): 14.5 W (12 VDC); 18.3 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Protection

IP67

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Structure

Casing Material

Metal + plastic

Product Dimensions

288.4 mm × 94.4 mm × 84.7 mm (11.35″ × 3.72″× 3.33″)(L × W × H)

Net Weight

1.00 kg (2.20 lb)

Gross Weight

1.30 kg (2.87 lb)
