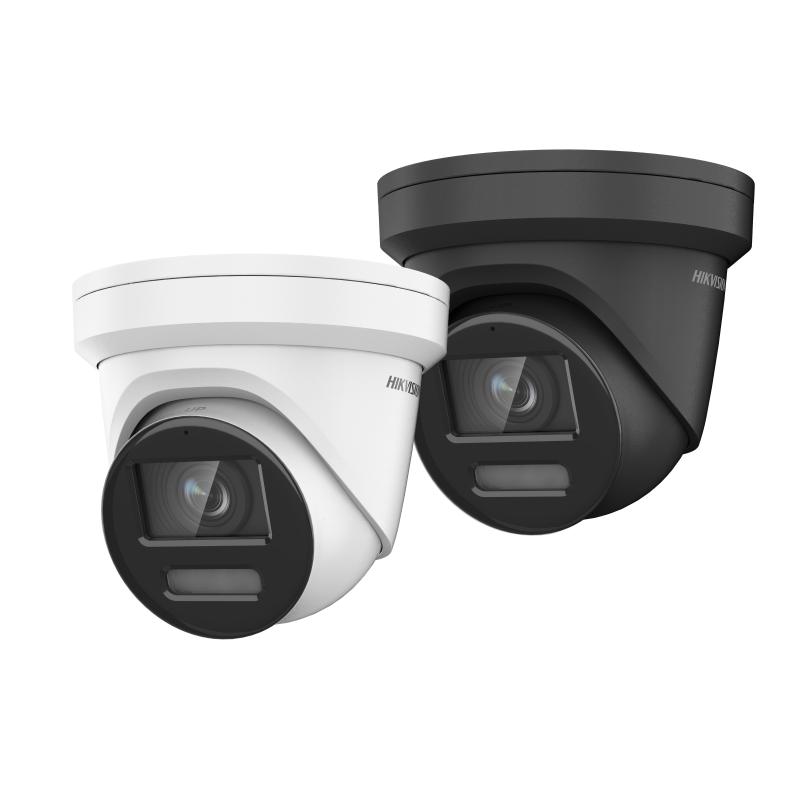

DS-2CD1347G3-LIU 4 MP ColorVu 3.0 Fixed Turret Network Camera

Sale!
DS-2CD1347G3-LIU 4 MP ColorVu 3.0 Fixed Turret Network Camera

Original price was: $149.99.Current price is: $139.99.

Category: Tag: Brand:
📱 Contact via WhatsApp
Hikvision

Description

  • HikAI-ISP for excellent noise reduction effect
  • Super clear 24/7 colorful imaging with ColorVu 3.0 technology
  • Motion Detection 3.0, more accurate on person and vehicle classification
  • -SL/-SRB: Strobe Light & Audio Alarm to deter intruders
  • -SL/-SRB: Two-Way Audio via camera and Hik-Connect
  • Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
  • -F: Support on-board storage up to 512 GB (SD card slot)
  • Water and dust resistant (IP67)
  • Camera
  • Image Sensor1/3″ Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time1 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 101.5°, vertical FOV 54.6°, diagonal FOV 122.1°

    4 mm, horizontal FOV 84.1°, vertical FOV 45.6°, diagonal FOV 99.1°

  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.0
  • Depth of Field

    2.8 mm: 1.7 m to ∞

    4 mm: 1.6 m to ∞

  • DORI
  • DORI

    2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m

    4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

  • Illuminator
  • Supplement Light TypeIR,White Light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream

    50 Hz:

    25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

    60 Hz:

    24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720,640 × 480,640 × 360)

    60 Hz: 24 fps (1280 × 720,640 × 480,640 × 360)

  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Region of Interest (ROI)1 fixed region for main stream and sub-stream
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Audio
  • Audio TypeMono sound
  • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps(MP3)
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (Profile S, Profile G),ISAPI,SDK
  • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • ClientiVMS-4200;Hik-Connect
  • Web Browser

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC,HLC,3D DNR
  • Privacy Mask4 programmable rectangular privacy masks
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage

    -LIU、LIU/S(L)(RB)：NA -LIUF、LIUF/S(L)(RB)：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

  • Built-in MicrophoneYes,1 built-in microphone
  • Built-in Speaker

    -LIU、-LIUF: NA

    -LIU/S(L)(RB)、-LIUF/S(L)(RB): Max. power consumption: 2 W, max. sound pressure level: 10 cm: 101 dB

  • AudioNA
  • AlarmNA
  • Reset Key

    -LIU、LIU/S(L)(RB)：NA -LIUF、LIUF/S(L)(RB)：YES

  • Event
  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • LinkageUpload to FTP,notify surveillance center,send email,trigger recording,trigger capture
  • General
  • Power

    -LIU/-LIUF: 12 VDC ± 25%, 0.52 A, max. 6.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W,

    -LIU/S(L)(RB)、-LIUF/S(L)(RB): 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.8 W

  • MaterialCover: Plastic, main body: Metal
  • DimensionØ110 mm × 102.7 mm (Ø4.33″ × 4.04″)
  • Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
  • Weight-LIUF/SL: Approx. 405 g (0.8 lb.)
  • With Package Weight

    -LIU: Approx. 550g (1.2 lb.)

    -LIUF: Approx. 575g (1.3 lb.)

    -LIU/S(L)(RB): Approx. 590g (1.3 lb.)

    -LIUF/S(L)(RB): Approx. 600g (1.3 lb.)

  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
  • General FunctionHeartbeat,mirror,flash log,password reset via email,password protection,anti-banding
  • Flashing Light

    -LIU、-LIUF：NA

    -LIU(F)/SL：White Light

    -LIU(F)/SRB：Red and Blue Light

  • Approval
  • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
  • Safety

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013

Brand

Hikvision
