Description

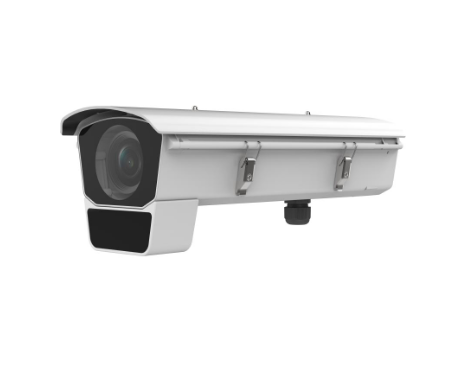

Hikvision iDS-2CD7046G0/EP-IHSY 4MP DeepinView ANPR Box With Housing Camera
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter technology
- Clear imaging against strong back light due to 140 WDR technology
- License Plate Recognition
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP66) and vandal proof (IK10)
Available models:
- Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. Illumination
Color: 0.0005 Lux @ (F1.2, AGC ON);
B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & Night
IR cut filter
Blue glass module to reduce ghost phenomenon
- Lens
- Focal Length & FOV
3.8 to 16 mm, horizontal FOV: 109.1° to 29.6°, vertical FOV: 61.3° to 16.8°, diagonal FOV: 125.1° to 33.9°
11 to 40 mm, horizontal FOV: 39.1° to 12.1°, vertical FOV: 21.4° to 6.8°, diagonal FOV: 45.8° to 13.9°
- Lens MountCS mount
- FocusManual
- Iris TypeP-iris
- Aperture
3.8 to 16 mm: F1.4
11 to 40 mm: constant F1.4 throughout the zoom range
- DORI
- DORI
Wide:
3.8 to 16 mm: D (Detect): 57.2 m, O (Observe): 22.7 m, R (Recognize): 11.4 m, I (Identify): 5.7 m
11 to 40 mm: D (Detect): 165.5 m, O (Observe): 65.7 m, R (Recognize): 33.1 m, I (Identify): 16.6 m
Tele:
3.8 to 16 mm: D (Detect): 206.9 m, O (Observe): 82.1 m, R (Recognize): 41.4 m, I (Identify): 20.7 m
11 to 40 mm: D (Detect): 510.3 m, O (Observe): 202.5 m, R (Recognize): 102.1 m, I (Identify): 51 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range
3.8 to 16 mm: 80 m
11 to 40 mm: 120 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fourth Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fifth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream/Third stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)4 fixed regions for each stream
- Target CroppingYes
- e-PTZSupport Patrol and Auto Tracking settings
- Audio
- Audio TypeMono sound
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 320 Kbps (MP3)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
- Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule, Alarm Trigger, Video Trigger
- Wide Dynamic Range (WDR)140 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, Defog, 3D DNR
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
- Image StabilizationEIS
- Privacy Mask8 programmable polygon privacy masks
- Interface
- Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
- Ethernet Interface1 RJ45 100 M/1000 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Audio1 input (line in), 1 output (line out), 3.5 mm connector
- Alarm2 inputs, 2 outputs (max. 24 VDC, 1A)
- RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset KeyYes
- Power Output12 VDC, max. 100 mA
- Event
- Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error), video quality diagnosis, vibration detection
- Smart EventScene change detection, audio exception detection, defocus detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
- Deep Learning Function
- Road Traffic and Vehicle Detection
Blocklist and allowlist: up to 10,000 records
Captures vehicle that has no license plate
Support license plate recognition of motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- MetadataRoad traffic
- General
- Power
24 VDC ± 20%, 0.9 A, max. 21.6 W, three-core terminal block
24 VAC ± 20%, 0.93 A, max. 22.1 W, three-core terminal block
PoE: IEEE 802.3bt, Type3, Class 5, 42.5 V to 57 V, 0.58 A to 0.44 A, max. 24.6 W
- MaterialAluminum alloy body, PP sun shield, PC front panel
- Dimension465.3 mm × 169.2 mm × 164.7 mm (18.3″ × 6.7″ × 6.5″)
- Package Dimension615 mm × 360 mm × 225 mm (24.2″ × 14.2″ × 8.9″)
- Approx. 3800 g (8.4 lb.)
- With Package WeightApprox. 6000 g (13.2 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
- HeaterYes
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);
LOA (IEC/EN 60950-1)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionIP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
- Anti-Corrosion ProtectionWith -Y: NEMA 4X(NEMA 250-2018)
- Automotive and RailwayWith -R: EN50121-4
- OtherPVC FREE
Additional information
| Models | iDS-2CD7046G0/EP-IHSY(3.8-16mm), iDS-2CD7046G0/EP-IHSY(11-40mm), iDS-2CD7046G0/EP-IHSY(11-40mm)(C), iDS-2CD7046G0/EP-IHSY(3.8-16mm)(C)/O-STD |
|---|
Brand
Hikvision
