Hikvision iDS-2CD8A87G0P/PW NEW 8MP DeepinView High-Rise Littering Detection Camera

Hikvision iDS-2CD8A87G0P/PW NEW 8MP DeepinView High-Rise Littering Detection Camera - 2cd8a87g0p, Hikvision iDS-2CD8A87G0P/PW, Hikvision iDS-2CD8A87G0P/PW camera, ids, iDS-2CD8A87G0P/PW, iDS-2CD8A87G0P/PW camera, kbps, stream, video
Hikvision iDS-2CD8A87G0P/PW NEW 8MP DeepinView High-Rise Littering Detection Camera - 2cd8a87g0p, Hikvision iDS-2CD8A87G0P/PW, Hikvision iDS-2CD8A87G0P/PW camera, ids, iDS-2CD8A87G0P/PW, iDS-2CD8A87G0P/PW camera, kbps, stream, video
Hikvision iDS-2CD8A87G0P/PW NEW 8MP DeepinView High-Rise Littering Detection Camera - 2cd8a87g0p, Hikvision iDS-2CD8A87G0P/PW, Hikvision iDS-2CD8A87G0P/PW camera, ids, iDS-2CD8A87G0P/PW, iDS-2CD8A87G0P/PW camera, kbps, stream, video
Hikvision iDS-2CD8A87G0P/PW NEW 8MP DeepinView High-Rise Littering Detection Camera - 2cd8a87g0p, Hikvision iDS-2CD8A87G0P/PW, Hikvision iDS-2CD8A87G0P/PW camera, ids, iDS-2CD8A87G0P/PW, iDS-2CD8A87G0P/PW camera, kbps, stream, video

$899.00

Category: Tags: , , , , , , , ,
📱 Contact via WhatsApp
Hikvision

Description

  • High quality imaging with dual lens stitching design
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Water and dust resistant (IP67)
  • Built-in heater to ensure clear image under rainy or snowy weather
  • Dedicated algorithm of High-Rise Littering Detection

Available models:

iDS-2CD8A87G0P/PW(6mm)
  • Camera
  • Image Sensor1/1.8″ Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON)
  • Shutter Time1 s to 1/100,000 s
  • Lens
  • Lens TypeFixed focal lens, 6 mm
  • Focal Length & FOV6 mm, horizontal FOV 51°, vertical FOV 55.2°, diagonal FOV 73°
  • Iris TypeFixed
  • ApertureF1.0
  • DORI
  • DORI

    6 mm: D (Detect): 116 m, O (Observe): 46 m, R (Recognize): 23 m, I (Identify): 11 m

    The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.

  • Video
  • Main Stream

    50 Hz: 25 fps (2560 × 2880)

    60 Hz: 24 fps (2560 × 2880)

  • Sub-Stream

    50 Hz: 25 fps (640 × 720)

    60 Hz: 24 fps (640 × 720)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)4 fixed regions for main stream, sub-stream and third stream
  • Target CroppingYes
  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 20 channels
  • APIONVIF (Profile S, Profile T),ISAPI,SDK,ISUP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
  • Network Storage

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image
  • Image Parameters SwitchYes
  • Image Settingssaturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 50 dB
  • Image EnhancementBLC,3D DNR
  • Privacy Mask8 programmable polygon privacy masks
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset KeyYes
  • Event
  • Basic EventMotion detection,video tampering alarm,exception
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
  • Deep Learning Function
  • Object Thrown from Building Detection

    Detects up to 48 targets simultaneously

    Configurable sensitivity, validity, and alarm priority for multi-scenario adaptation

    Supports up to 4 privacy masks

    Filters background interference (e.g., trees or leaves) with 1 shield region, preserving preview integrity

    Supports floor and unit parameter settings, alarm picture overlay, and alarm information for floor and unit

  • General
  • Power

    12 VDC ± 20%, 0.9 A, max. 10.8 W,reverse polarity protection,Ø5.5 mm coaxial power plug,

    PoE: IEEE 802.3af, Class 3, max. 12.5 W

  • MaterialMetal and plastic
  • Dimension142.7 mm × 111.9 mm × 199.8 mm (5.62″ × 4.41″ × 7.87″)
  • Package Dimension275 mm × 205 mm × 173 mm (10.83″ × 8.07″ × 6.81″)
  • Approx. 1810 g (3.99 lb.)
  • With Package WeightApprox. 990 g (2.18 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionHeartbeat,flash log,password reset via email,pixel counter,password protection,one-key reset,anti-banding
  • Approval
  • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
  • Safety

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

Additional information

Models

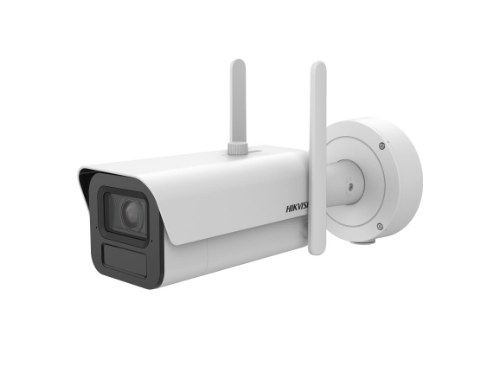

iDS-2CD7A86G2-IZHSY/4G(8-32mm)(B)OSTD/LA, iDS-2CD7A86G2-IZHSY/4G(2.8-12mm)(B)O-STD, iDS-2CD7A86G2-IZHSY/4G(8-32mm)(B), iDS-2CD7A86G2-IZHSY/4G(10-50mm)(B)O-STD, iDS-2CD7A86G2-IZHSY/4G(2.8-12)(B)OSTD/LA, iDS-2CD7A86G2-IZHSY/4G(10-50)(B)O-STD/LA, iDS-2CD7A86G2-IZHS/4G(2.8-12)(B)O-STD/LA, iDS-2CD7A86G2-IZHS/4G(2.8-12mm)(B)O-STD, iDS-2CD7A86G2-IZHS/4G(8-32mm)(B), iDS-2CD7A86G2-IZHS/4G(10-50mm)(B), iDS-2CD7A86G2-IZHS/4G(8-32)(B)O-STD/LA, iDS-2CD7A86G2-IZHS/4G(10-50)(B)O-STD/LA
