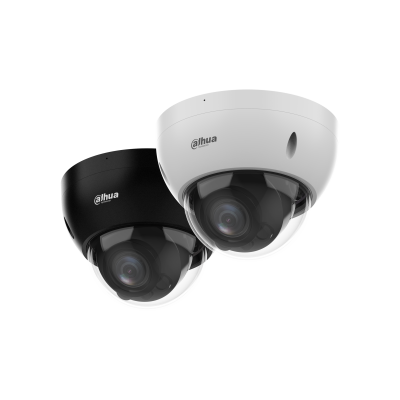

Name: Dahua DH-IPC-HDBW2541R-Z(A)S(-k) 5MP IR Vari-focal Dome WizSense Network Camera
Brand: Dahua
SKU: 39607
Availability: InStock

Previous Product
Next Product

Dahua IPC-HDBW2541R-Z(A)S(-k) 5MP IR Vari-focal Dome WizSense Network Camera - dahua IPC-HDBW2541R-ZAS, dahua IPC-HDBW2541R-ZAS camera, dahua IPC-HDBW2541R-ZS, dahua IPC-HDBW2541R-ZS camera, dahua IPC-HDBW2541R-ZS-k, dahua IPC-HDBW2541R-ZS-k camera, detection, IPC-HDBW2541R-ZAS, IPC-HDBW2541R-ZAS camera, IPC-HDBW2541R-ZS, IPC-HDBW2541R-ZS camera, IPC-HDBW2541R-ZS-k, IPC-HDBW2541R-ZS-k camera, max, only, supports

Dahua DH-IPC-HDBW2541R-Z(A)S(-k) 5MP IR Vari-focal Dome WizSense Network Camera

Price range: $229.00 through $289.00

Models

color

Clear

Dahua DH-IPC-HDBW2541R-Z(A)S(-k) 5MP IR Vari-focal Dome WizSense Network Camera quantity

SKU: N/A Category: Security Camera Tags: dahua IPC-HDBW2541R-ZAS, dahua IPC-HDBW2541R-ZAS camera, dahua IPC-HDBW2541R-ZS, dahua IPC-HDBW2541R-ZS camera, dahua IPC-HDBW2541R-ZS-k, dahua IPC-HDBW2541R-ZS-k camera, detection, DH-IPC-HDBW2541R-ZS-k, IPC-HDBW2541R-ZAS, IPC-HDBW2541R-ZAS camera, IPC-HDBW2541R-ZS, IPC-HDBW2541R-ZS camera, IPC-HDBW2541R-ZS-k camera, max, only, supports Brand: Dahua

📱 Contact via WhatsApp

Share to：

X
Facebook
WhatsApp
Bluesky
LinkedIn
Reddit
Tumblr
Threads
Pinterest
Email
Print
Telegram
Mastodon
Nextdoor

Description
Additional information
Reviews (0)

Description

Dahua IPC-HDBW2541R-Z(A)S(-k):IPC-HDBW2541R-ZS IPC-HDBW2541R-ZAS IPC-HDBW2541R-ZS-k 5MP IR Vari-focal Dome WizSense Network Camera

IPC-HDBW2541R-ZAS

5MP IR Vari-focal Dome WizSense Network Camera

The parameters and datasheets below can only be applied to 2541-S2 series.

> 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.

> Outputs max. 5 MP (2960 × 1668) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate. · Built-in IR LED, and the max. illumination distance is 40 m.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Alarm: 1 in, 1 out (Only – ZAS supports); audio: 1 in, 1 out (Only – ZAS supports); supports max. 256 G Micro SD card; built in MIC.

> 12 VDC/PoE power supply, easy for installation.

> IP67, IK10 protection.

SMD Plus.

Camera

Image Sensor

1/2.7″ CMOS

Max. Resolution

2960 (H) × 1668 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.007 [email protected] (Color, 30 IRE)
0.0007 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

40 m (131.23 ft) (IR)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

H: 113°–31°; V: 58°–18°; D: 138°–36°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

64.0 m

(210.00 ft)

25.6 m

(84.00 ft)

12.8 m

(42.00 ft)

6.4 m

(21.00 ft)

210.0 m

(689.00 ft)

84.0 m

(275.60 ft)

42.0 m

(137.80 ft)

21.0 m

(68.90 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2960 × 1668 @(1–20 fps )/2688 × 1520@(1–25/30 fps)
sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

2960 × 1668 (2960 × 1668); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only – ZAS supports); SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE; Chrome; Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Security

�rusted execution; Digest; �ecurity logs; WSSE; �ccount lockout; �yslog; �ideo encryption; 802.1x; IP/MAC filtering; HTTPS; �rusted upgrade; �rusted boot; �eneration and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive

2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port) (Only – ZAS supports)

Audio Output

1 channel (RCA port) (Only – ZAS supports)

Alarm Input

1 channel in: 5mA 3V–5V DC (Only – ZAS supports)

Alarm Output

1 channel out: 300mA 12V DC (Only – ZAS supports)

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

-ZS:
Basic: 2.4 W (12 VDC); 3 W (PoE)
Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.1 W (12 VDC); 7.3 W (PoE)
-ZAS:
Basic: 2.4 W (12 VDC); 3 W (PoE)
Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.2 W (12 VDC); 7.4 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95%

Protection

IP67; IK10

Structure

Casing Material

Metal

Product Dimensions

93.4 mm × Φ122 mm (3.68″ × Φ4.80″)

Net Weight

-ZS: 0.50 kg (1.10 lb)
-ZAS: 0.51 kg (1.12 lb)

Gross Weight

-ZS: 0.66 kg (1.46 lb)
-ZAS: 0.67 kg (1.48 lb)

IPC-HDBW2541R-ZS-K

5MP IR Vari-focal Dome WizSense Network Camera

*The parameters and datasheets below can only be applied to 2541-S2 series.

> 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.

> Outputs max. 5 MP (2960 × 1668) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 40 m.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).

> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Alarm: 1 in, 1 out (Only – ZS supports); supports max. 256 G Micro SD card.

> 12 VDC/PoE power supply, easy for installation.

> IP67, IK10 protection.

SMD Plus.

Camera

Image Sensor

1/2.7″ CMOS

Max. Resolution

2960 (H) × 1668 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.007 [email protected] (Color, 30 IRE)
0.0007 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

40 m (131.23 ft) (IR)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

H: 113°–31°; V: 58°–18°; D: 138°–36°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

64.0 m

(210.00 ft)

25.6 m

(84.00 ft)

12.8 m

(42.00 ft)

6.4 m

(21.00 ft)

210.0 m

(689.00 ft)

84.0 m

(275.60 ft)

42.0 m

(137.80 ft)

21.0 m

(68.90 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Stream Capability

2 streams

Resolution

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; defocus detection; external alarm (Only – ZAS supports); SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE; Chrome; Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive

2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Alarm Input

1 channel in: 5mA 3V–5V DC (Only – ZAS supports)

Alarm Output

1 channel out: 300mA 12V DC (Only – ZAS supports)

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95%

Protection

IP67; IK10

Structure

Casing Material

Metal

Product Dimensions

93.4 mm × Φ122 mm (3.68″ × Φ4.80″)

Net Weight

-ZS: 0.50 kg (1.10 lb)
-ZAS: 0.51 kg (1.12 lb)

Gross Weight

-ZS: 0.66 kg (1.46 lb)
-ZAS: 0.67 kg (1.48 lb)

IPC-HDBW2541R-ZS

5MP IR Vari-focal Dome WizSense Network Camera

The parameters and datasheets below can only be applied to 2541-S2 series.

> 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.

> Outputs max. 5 MP (2960 × 1668) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 40 m.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Alarm: 1 in, 1 out (Only – ZAS supports); audio: 1 in, 1 out (Only – ZAS supports); supports max. 256 G Micro SD card; built in MIC.

> 12 VDC/PoE power supply, easy for installation.

> IP67, IK10 protection.

SMD Plus.

Camera

Image Sensor

1/2.7″ CMOS

Max. Resolution

2960 (H) × 1668 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.007 [email protected] (Color, 30 IRE)
0.0007 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

40 m (131.23 ft) (IR)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

H: 113°–31°; V: 58°–18°; D: 138°–36°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

64.0 m

(210.00 ft)

25.6 m

(84.00 ft)

12.8 m

(42.00 ft)

6.4 m

(21.00 ft)

210.0 m

(689.00 ft)

84.0 m

(275.60 ft)

42.0 m

(137.80 ft)

21.0 m

(68.90 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Stream Capability

2 streams

Resolution

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE; Chrome; Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Security

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive

2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port) (Only – ZAS supports)

Audio Output

1 channel (RCA port) (Only – ZAS supports)

Alarm Input

1 channel in: 5mA 3V–5V DC (Only – ZAS supports)

Alarm Output

1 channel out: 300mA 12V DC (Only – ZAS supports)

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95%

Protection

IP67; IK10

Structure

Casing Material

Metal

Product Dimensions

93.4 mm × Φ122 mm (3.68″ × Φ4.80″)

Net Weight

-ZS: 0.50 kg (1.10 lb)
-ZAS: 0.51 kg (1.12 lb)

Gross Weight

-ZS: 0.66 kg (1.46 lb)
-ZAS: 0.67 kg (1.48 lb)

Additional information

Models	IPC-HDBW2541R-ZS, IPC-HDBW2541R-ZAS, IPC-HDBW2541R-ZS-k
color	white, black

Reviews

There are no reviews yet.

Be the first to review “Dahua DH-IPC-HDBW2541R-Z(A)S(-k) 5MP IR Vari-focal Dome WizSense Network Camera”

Your email address will not be published. Required fields are marked *

Your rating *

Your review *

Name *

Email *

Dahua DH-IPC-HDBW2541R-Z(A)S(-k) 5MP IR…

Dahua DH-IPC-HDBW2541R-Z(A)S(-k) 5MP IR Vari-focal Dome WizSense Network Camera

Share to：

Description

Dahua IPC-HDBW2541R-Z(A)S(-k):IPC-HDBW2541R-ZS IPC-HDBW2541R-ZAS IPC-HDBW2541R-ZS-k 5MP IR Vari-focal Dome WizSense Network Camera

IPC-HDBW2541R-ZAS

IPC-HDBW2541R-ZS-K

IPC-HDBW2541R-ZS

Additional information

Reviews

Related products
