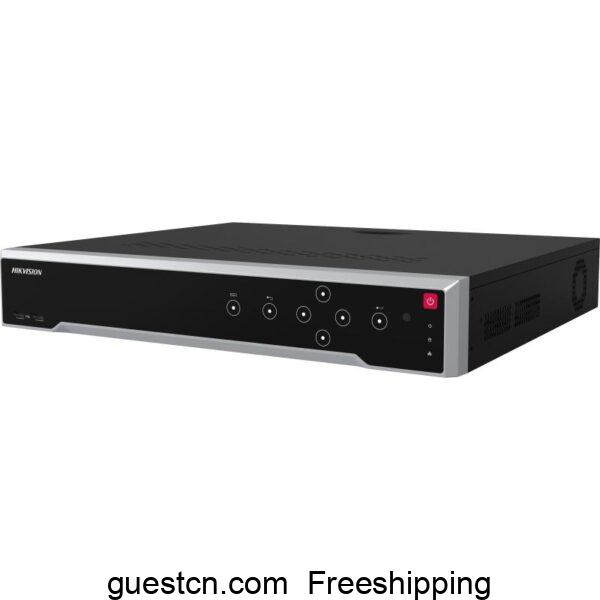

Hikvision DS-9664NI-I8 DS-9664NI-M8 64-ch 2U 4K NVR

Sale!
Hikvision DS-9664NI-I8 DS-9664NI-M8 64-ch 2U 4K NVR to Pinterest (opens in a new window)
Hikvision DS-9664NI-I8 DS-9664NI-M8 64-ch 2U 4K NVR

Hikvision DS-9664NI-I8 DS-9664NI-M8 64-ch 2U 4K NVR

(1 customer review)

Original price was: $1,899.99.Current price is: $1,799.99.

SKU: N/A Category: Tags: , Brand:
📱 Contact via WhatsApp
Hikvision

Description

  • Up to 64 channel IP cameras can be connected
  • Up to 12 MP high-definition live view, storage and playback
  • Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
  • 2 HDMI (different source) and 2 VGA (different source) interfaces
  • 8 HDD can be used for continuous video recording
  • Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
  • Video and Audio
  • IP Video Input

    64-ch

    Up to 12 MP resolution

    *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.

  • Incoming Bandwidth320 Mbps
  • Outgoing Bandwidth256 Mbps
  • Incoming Bandwidth (RAID Mode)200 Mbps
  • Outgoing Bandwidth (RAID mode)200 Mbps
  • HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA 1 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output Mode

    HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

    HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output2-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  • Decoding
  • Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
  • Recording Resolution

    32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

    *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.

  • Synchronous playback16-ch
  • Decoding Capability1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)
  • Dual-Stream RecordingSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
  • Network
  • Remote Connection128
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • RAID
  • RAID TypeRAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)
  • Auxiliary Interface
  • Serial Interface1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
  • SATA8 SATA interfaces supporting hot-plug
  • eSATA1 eSATA interface
  • CapacityUp to 10TB capacity for each disk
  • Alarm In/Out16/4
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • General
  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 30 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Chassis3U chassis
  • Dimension (W × D × H)445 × 465 × 92 mm ( 17.5″× 18.3″ × 3.6″)
  • ≤ 10 kg (22 lb)
  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Additional information

Models

DS-9664NI-M8, DS-9664NI-i8

Brand

Hikvision

1 review for Hikvision DS-9664NI-I8 DS-9664NI-M8 64-ch 2U 4K NVR

  1. Steve –

    Original and authentic, the seller is very professional and provides additional technical guidance services to help us install and debug. The product price is also very low, saving at least 20% more than other platforms.
